AI Broadcast Tools
A running list of broadcast tools I've built for live sports production. Some are fully open-source on GitHub; others are a bit more proprietary.
Tennis SRT Scorebug Gateway
Manages simultaneous SRT video restreams for tennis tournaments with up to 6 court cameras. Receives SRT feeds on ports 5001–5006, fetches live scorebug images every second, overlays them onto video using FFmpeg with NVIDIA NVENC hardware encoding, and outputs to ports 6001–6006. Includes a web interface with per-court status, expandable FFmpeg logs, and optional Google Chat webhook notifications.

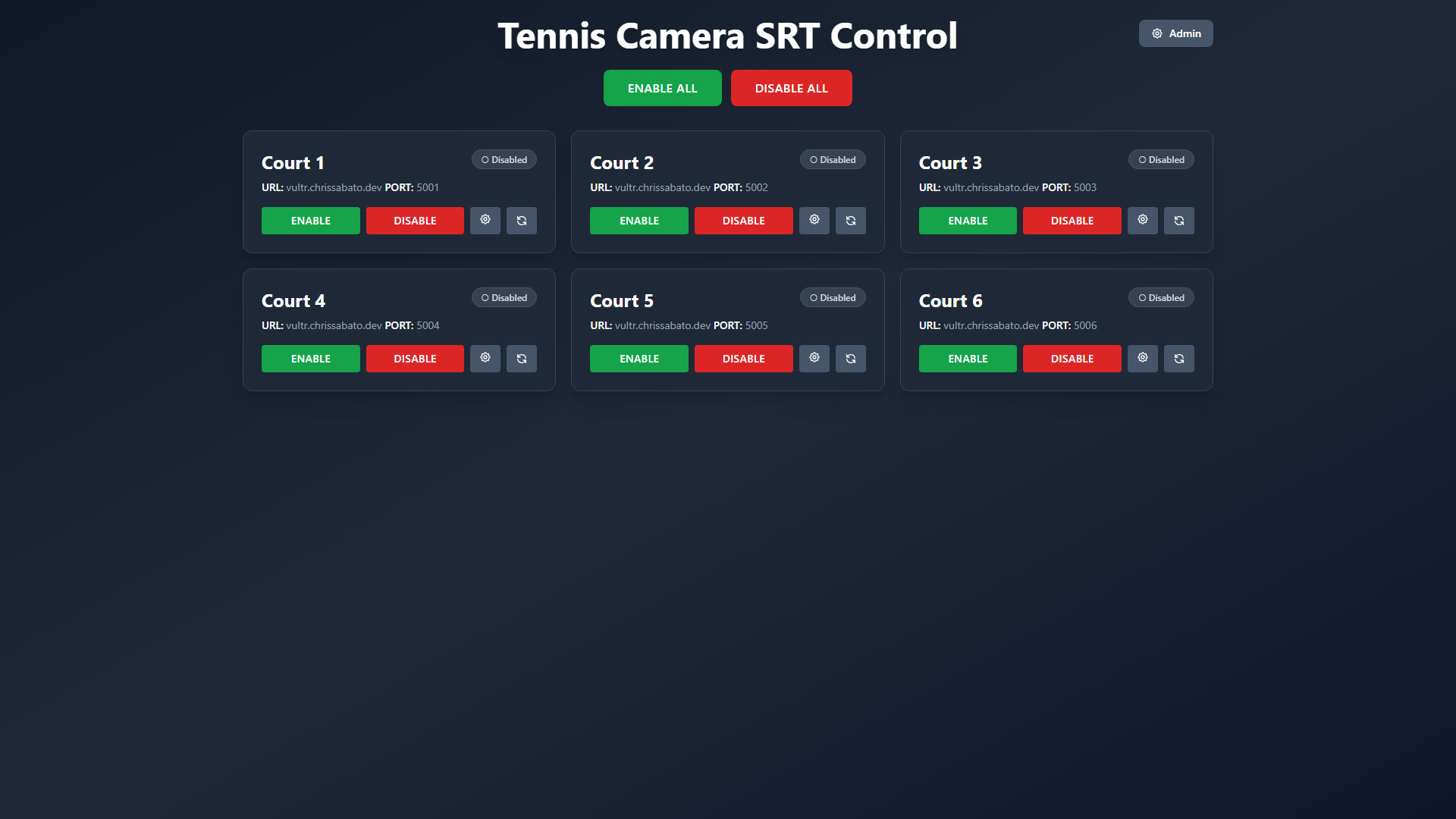

AIDA SRT Controller
A PHP dashboard for managing SRT video streams from multiple AIDA cameras. Enable or disable streaming per-camera or in bulk, with real-time status polling every 5 seconds. Each camera is configured with its display name, IP, auth key, SRT destination, port, and latency.

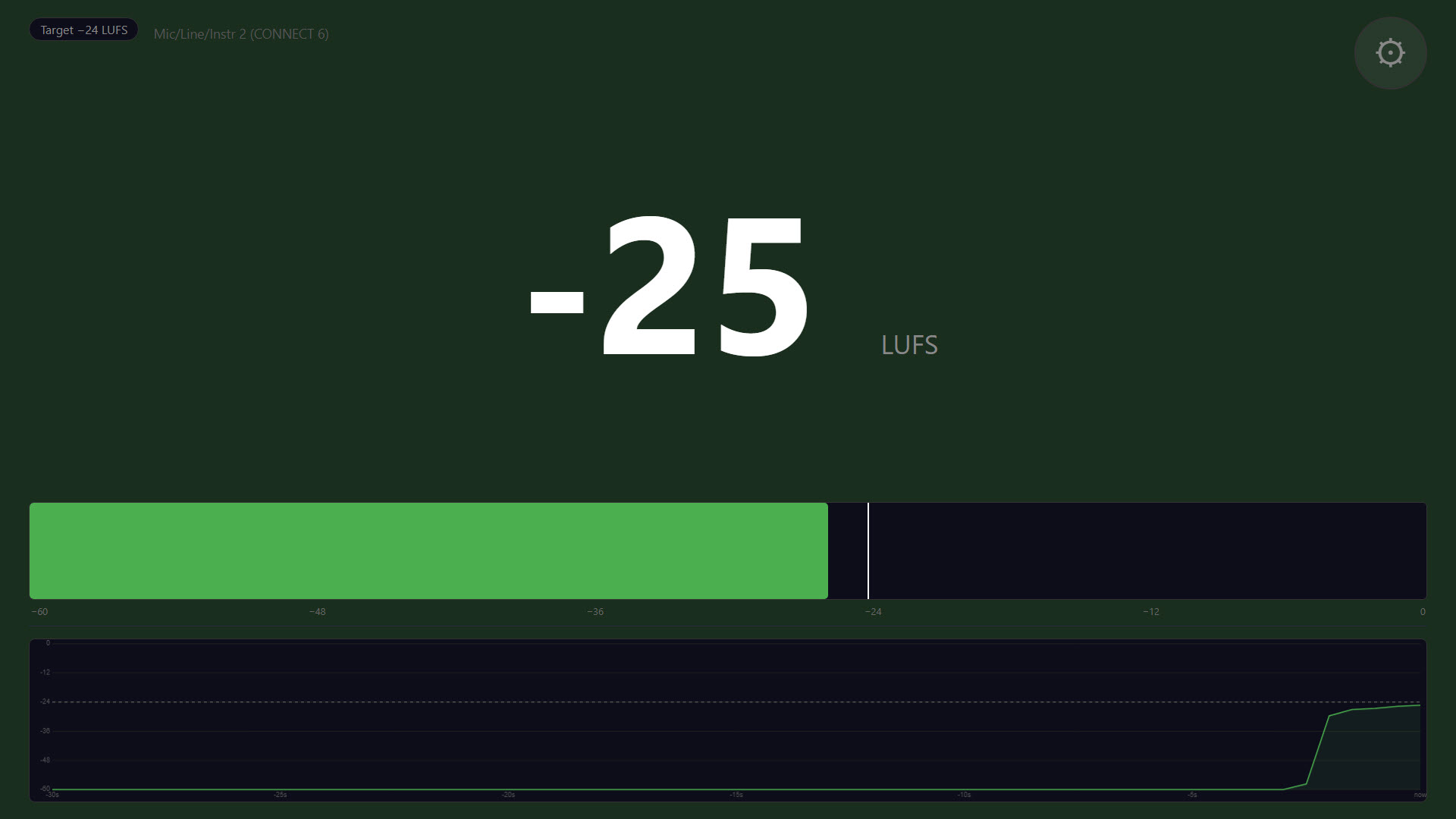

Audio Meter
A browser-based LUFS audio level meter for real-time microphone monitoring. Implements ITU-R BS.1770-4 K-weighting for accurate loudness measurement, with a rolling 3-second integrated loudness window and a 30-second scrolling history graph. Color-coded display (green/orange/red) gives instant visual feedback against a -24 LUFS broadcast reference. Supports device selection and bookmarkable ?input= URL parameters for pre-selecting audio inputs.

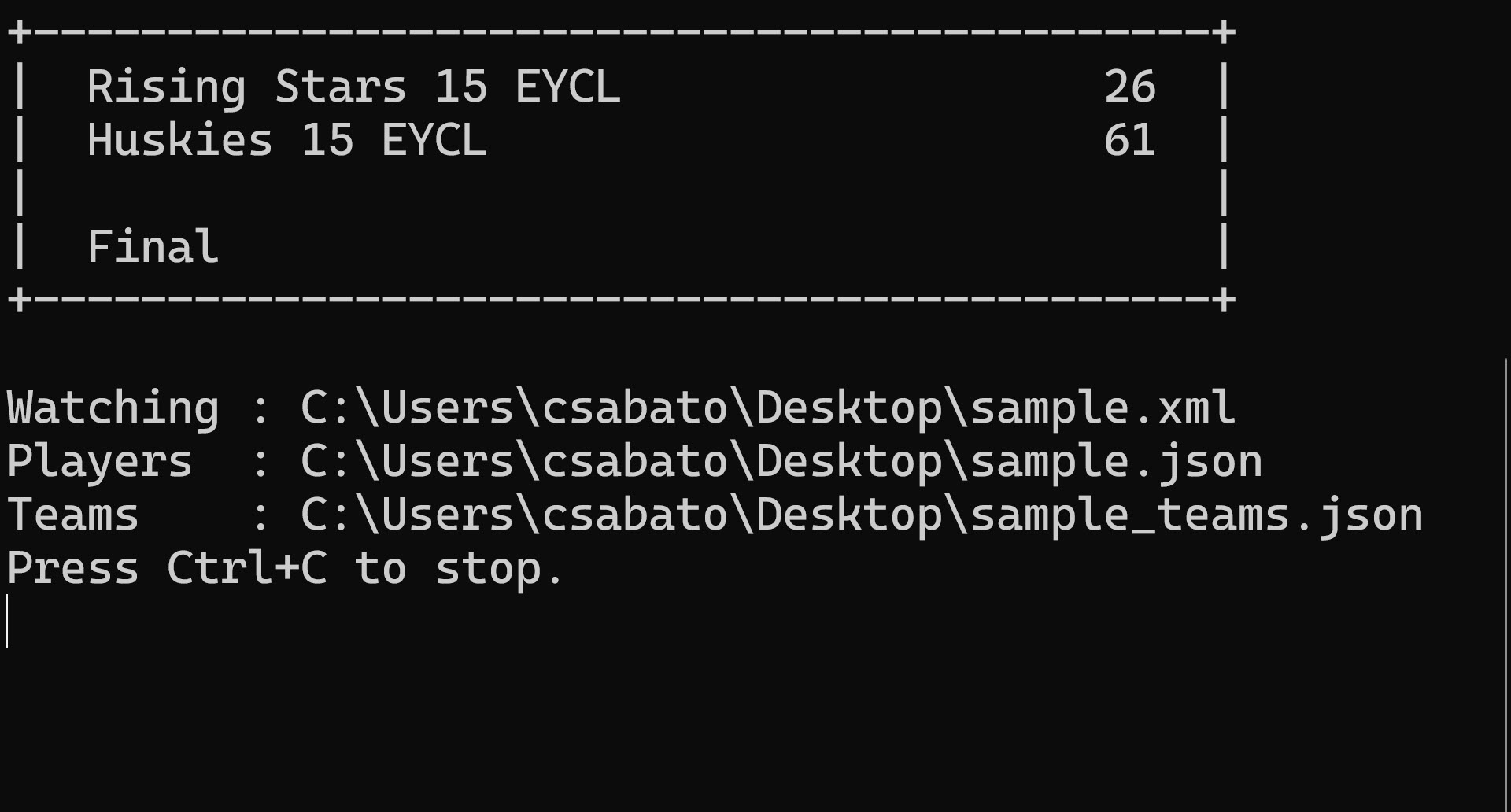

Broadcast Stats Parser
Parses live stats XMLs and generates various data feeds for broadcast graphics systems.
LiveCut
A browser-based HLS highlight clipper — no server uploads or software installation required. Load an .m3u8 URL, mark in/out points with keyboard shortcuts (I/O keys), queue multiple clips, and export directly to your machine using FFmpeg.wasm. Supports frame-accurate adjustment, live stream edge jumping, and stream-copy export for fast lossless results.
NCAA Stats XML Fixer
Upload NCAA game XML files, correct the team codes to match official NCAA values, and download the fixed files. Useful for getting broadcast graphics systems working with stats feeds that have mismatched or missing team codes.

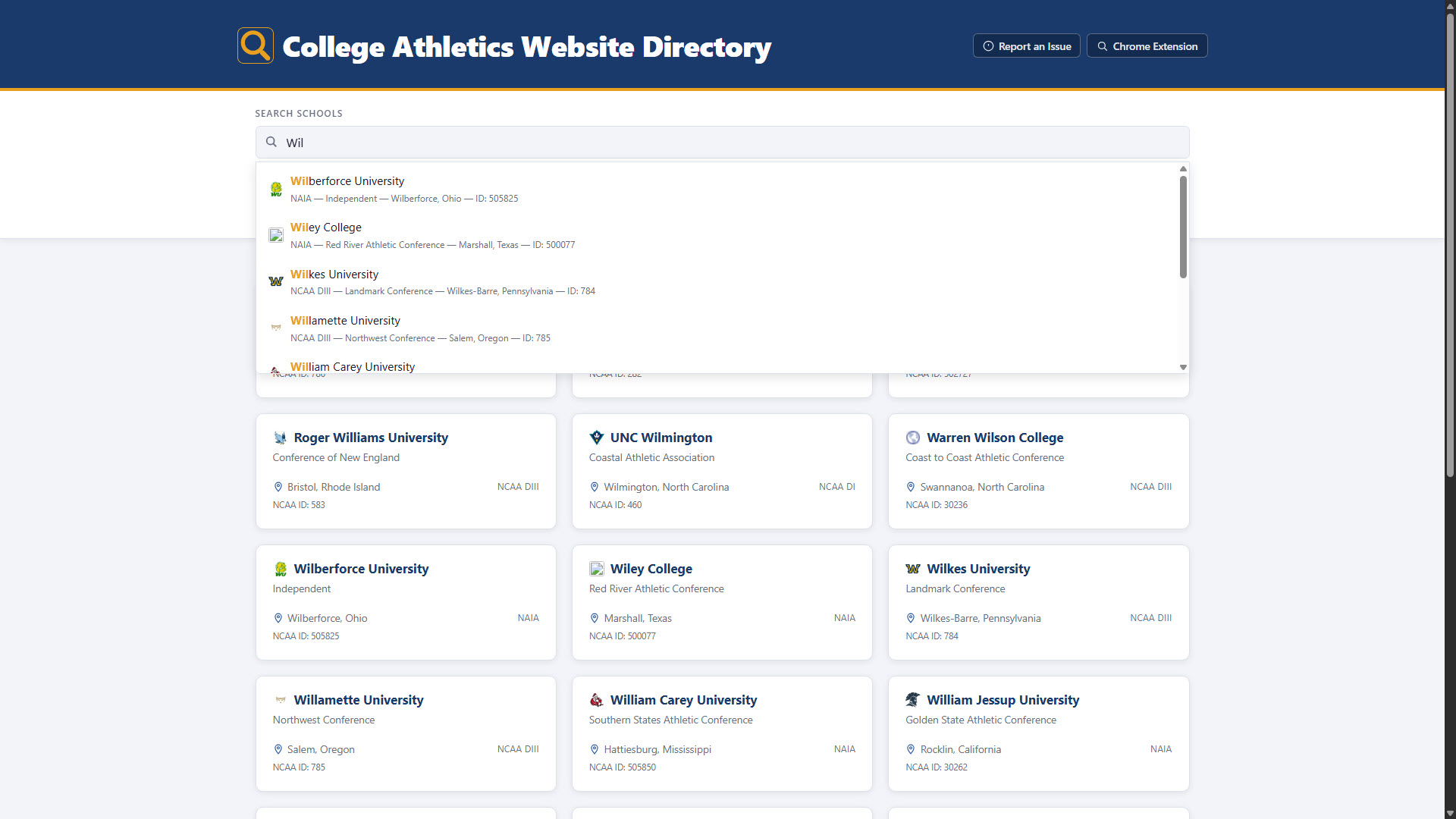

College Athletics Website Directory
A searchable directory of 1,300+ college athletics websites spanning NCAA Division I, II, III, and NAIA. Filter by state, division, or conference. Also available as a Chrome extension for quick access from anywhere in the browser.

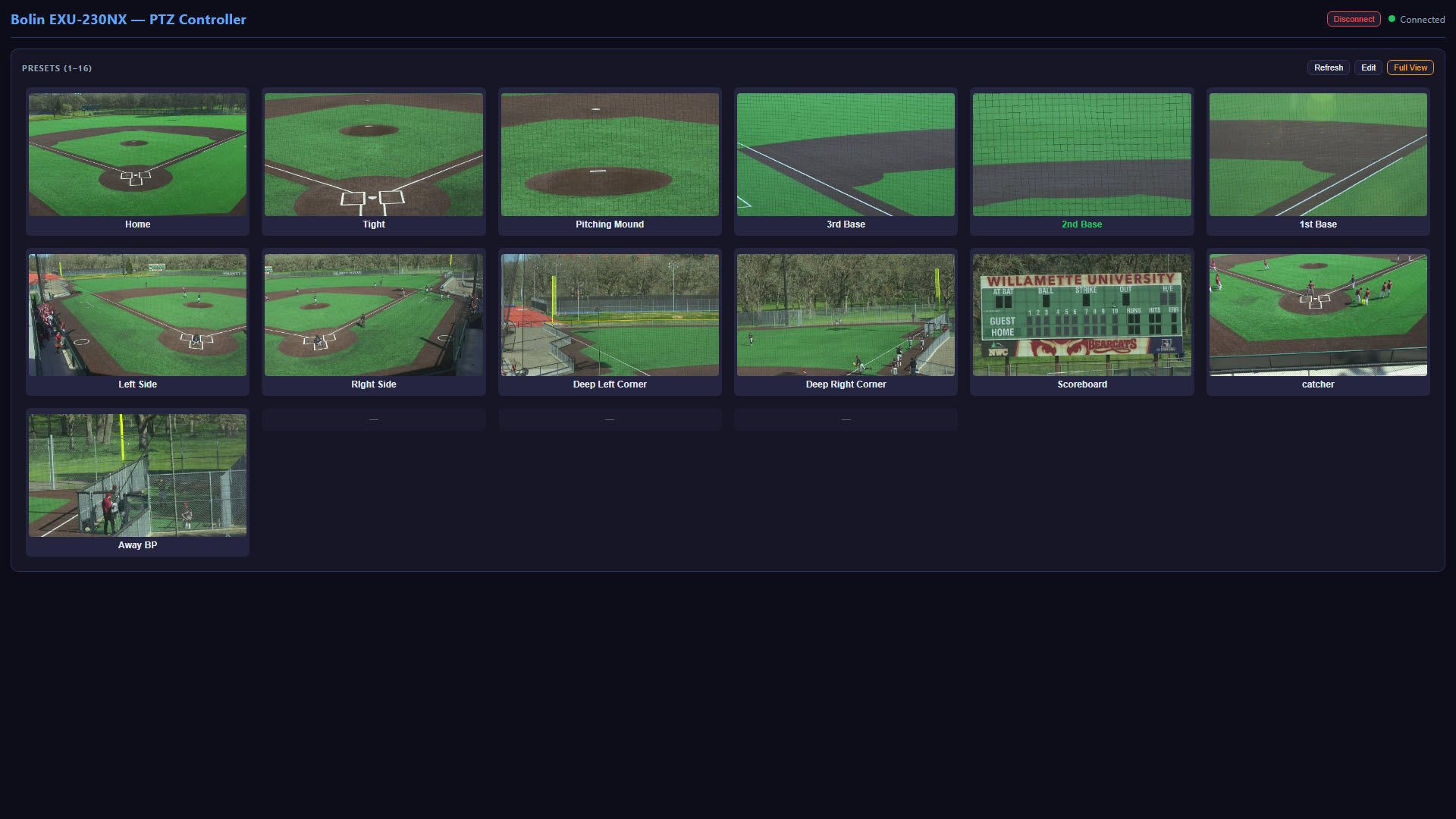

Bolin PTZ Preset Controller
A web-based controller for the Bolin EXU-230NX PTZ camera. Supports pan/tilt/zoom/focus with hold-to-move controls, 16 customizable presets with thumbnail snapshots, drag-and-drop preset reordering, SRT stream toggling, and a preset-only view mode for operators.

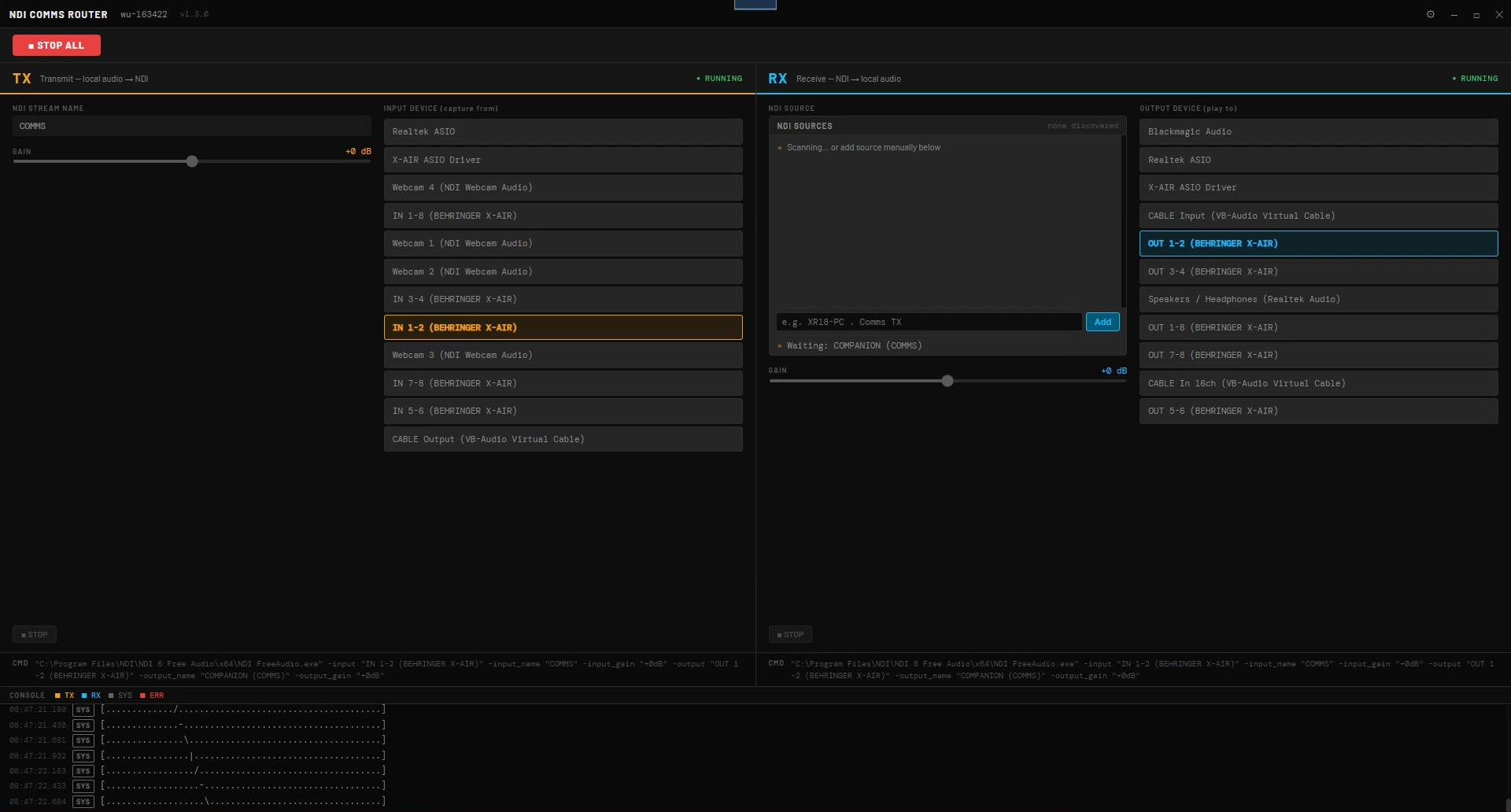

NDI Audio Interface Converter
An Electron-based GUI application for routing audio between a Behringer XR18 mixer and Dante Virtual Soundcard over NDI — enabling full-duplex comms over a standard network.

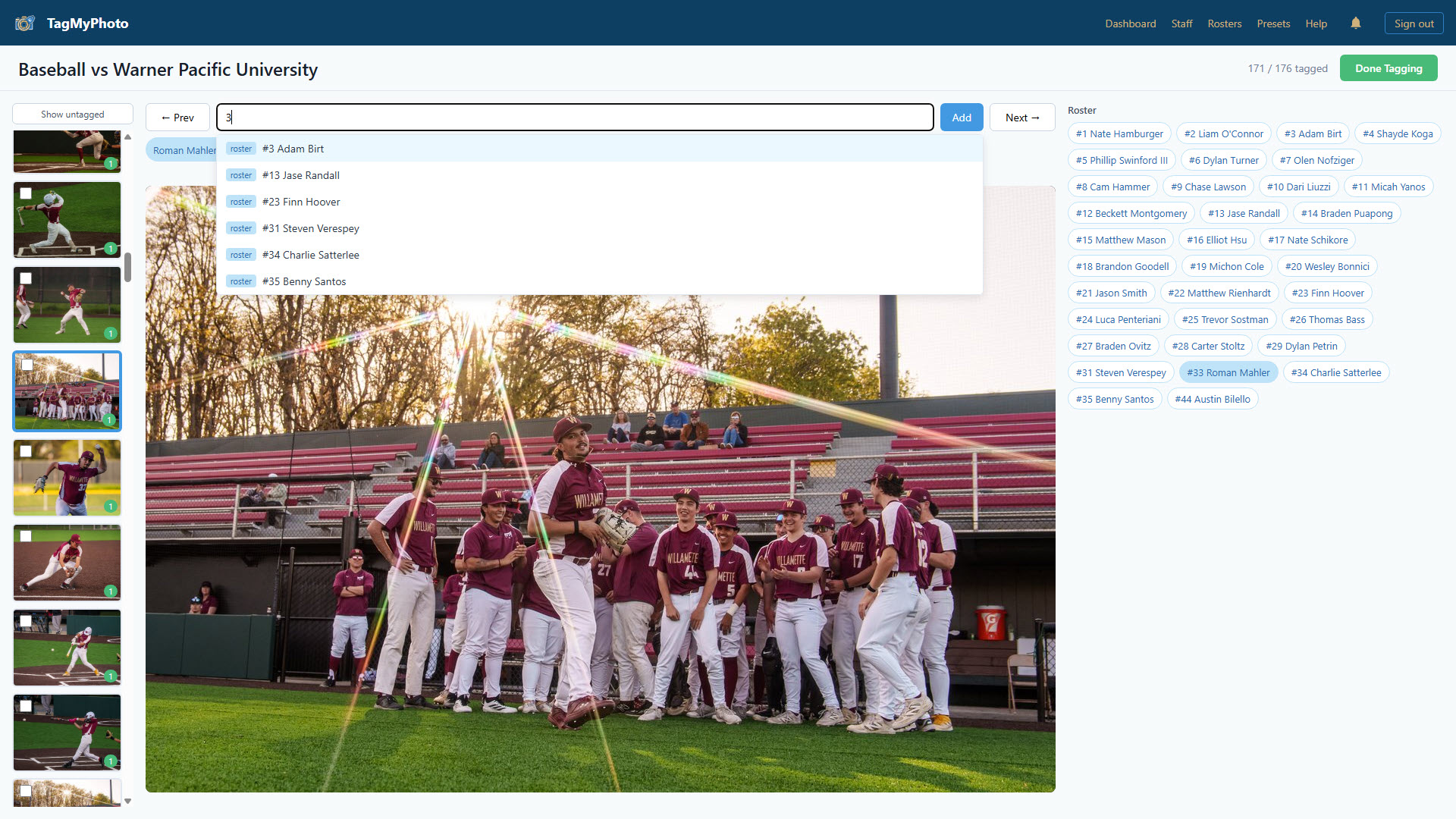

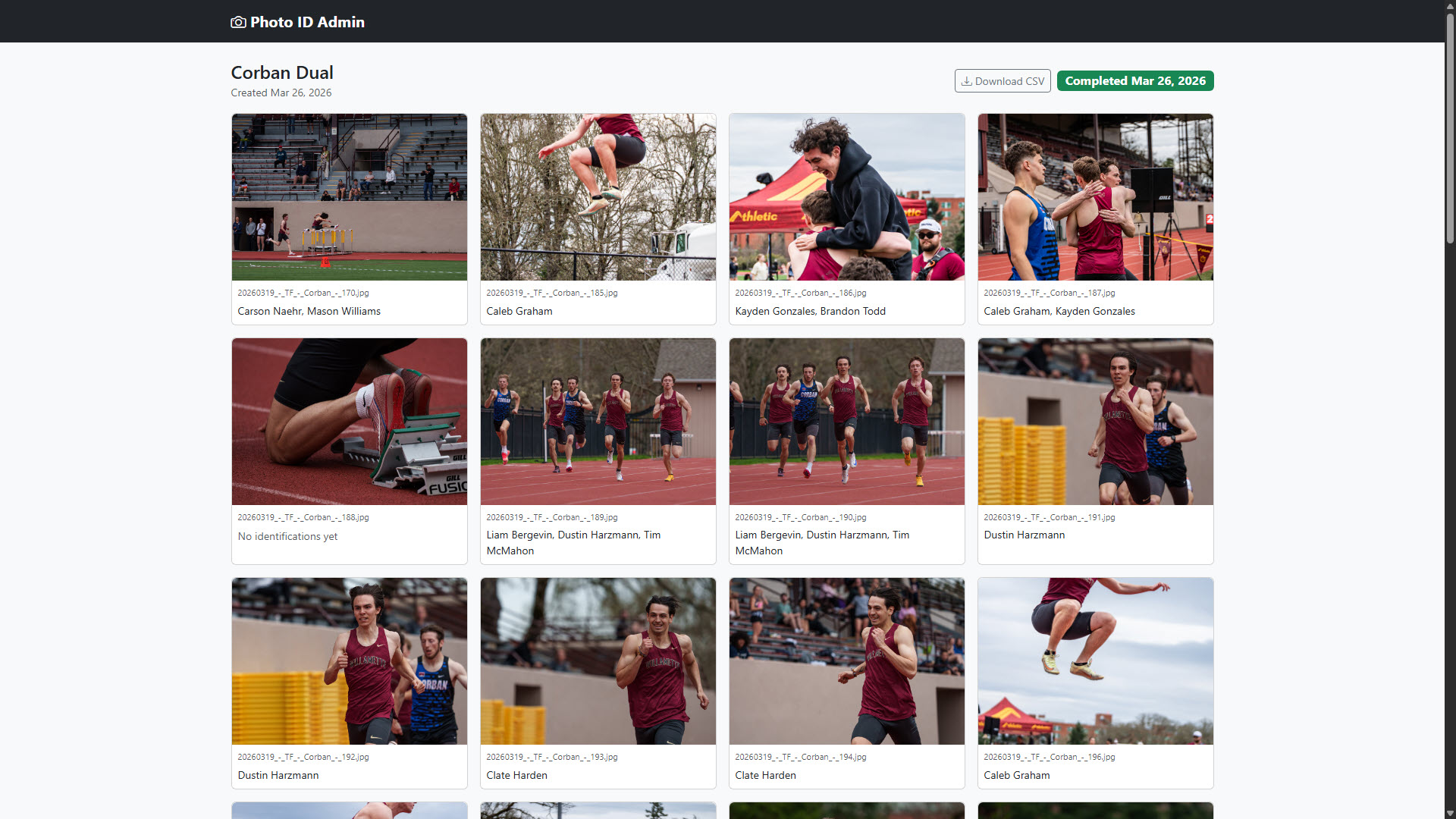

TagMyPhoto
TagMyPhoto is a photo management platform for sports organizations that automates the tedious work of tagging and crediting people in photos. Photographers upload event galleries, staff tag athletes using team rosters, and the platform embeds professional IPTC/XMP metadata — names, keywords, photographer credits — directly into the image files. When done, everyone gets a download link with a fully-tagged ZIP ready for press releases, social media, or archiving.
TagMyPhoto is a more advanved and scaleable version of an earlier project: GitHub

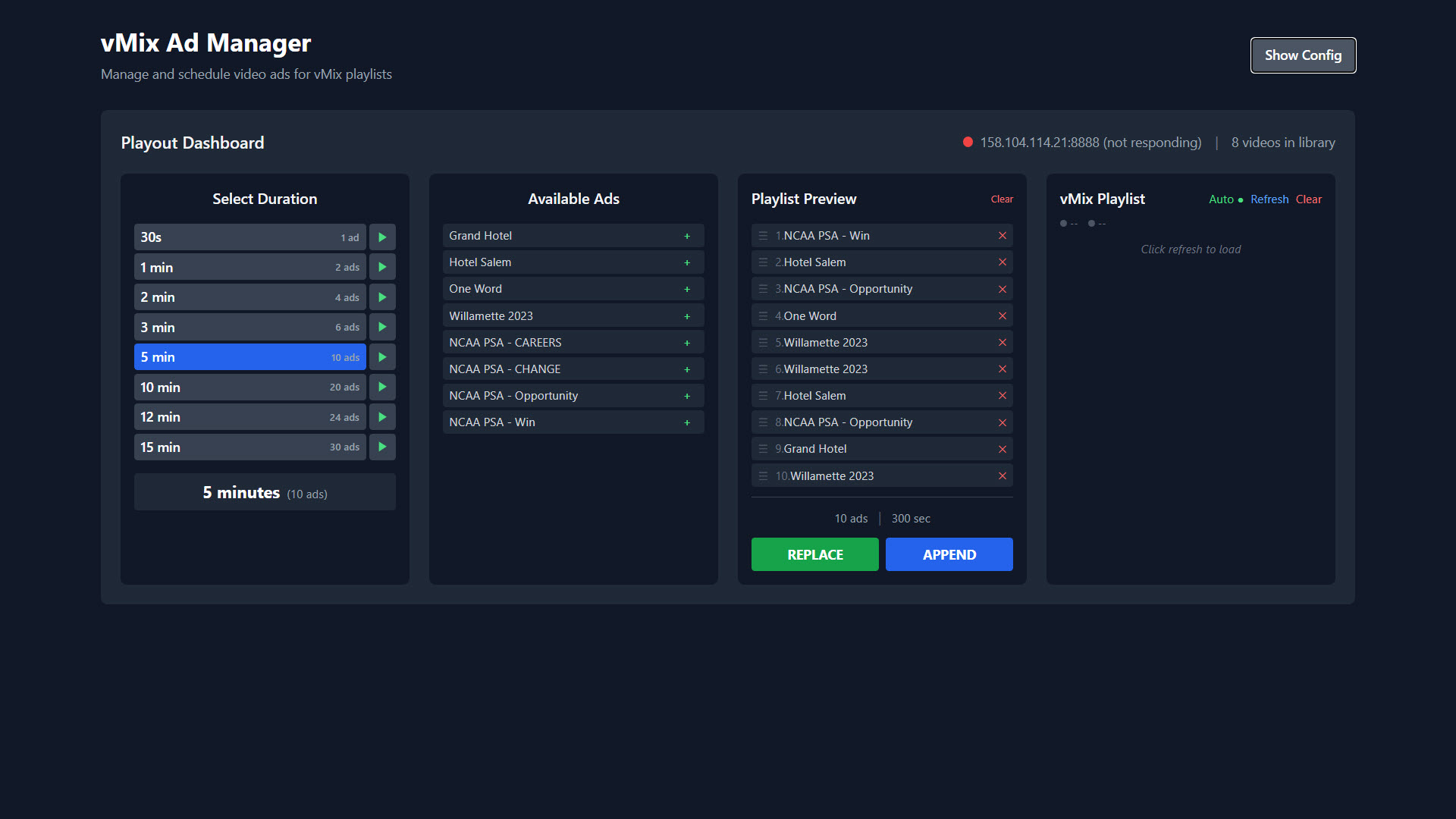

vMix Ad Manger
A web app for managing and scheduling video ads in vMix broadcast production software. Configure your ad library, generate weighted playlists by duration, and send them directly to a vMix playlist input — from any browser on your network.

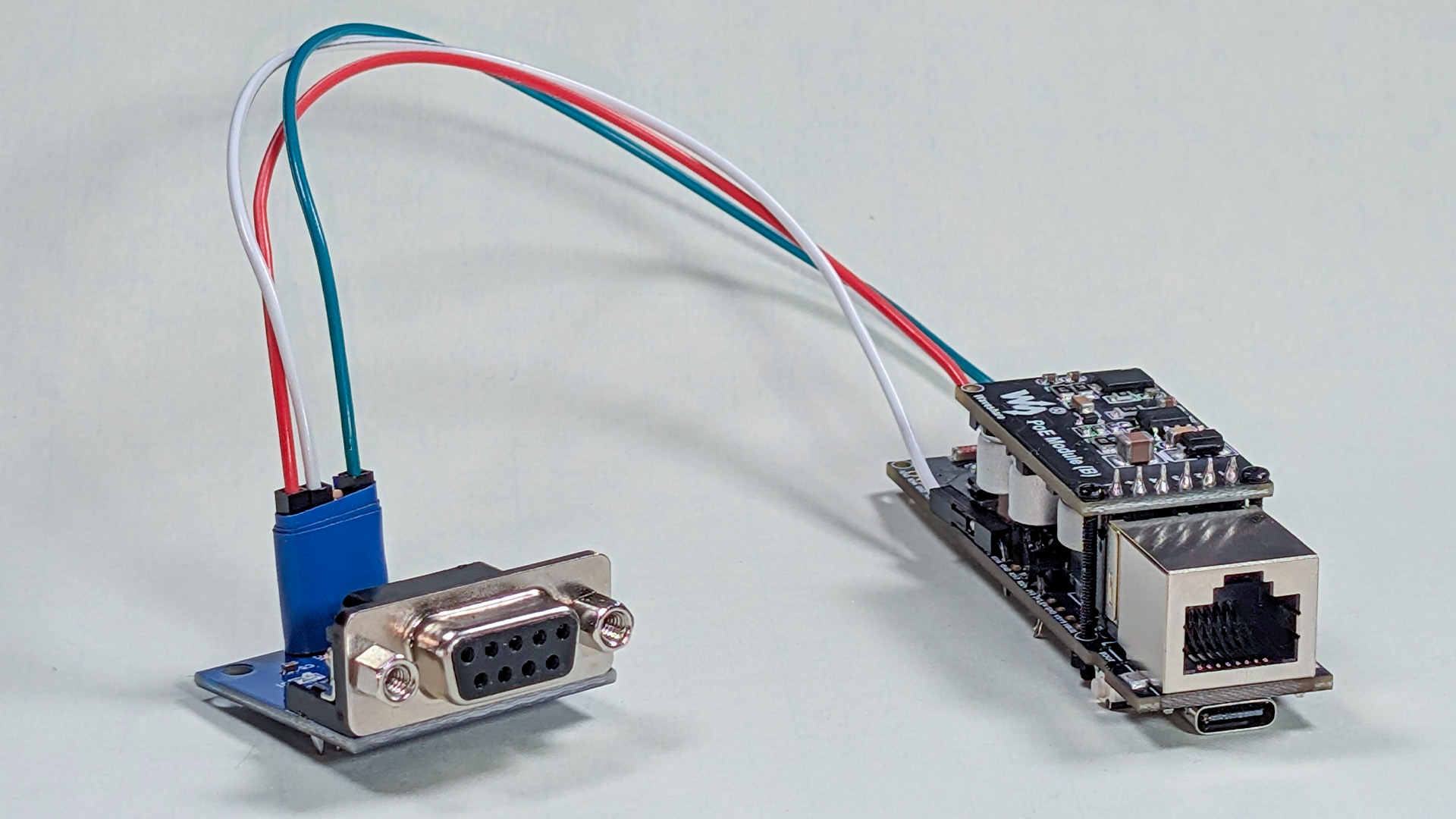

Dakbot
MicroPython firmware for an ESP32-S3-ETH board that reads live scoreboard data from a Daktronics AllSport 5000 controller and serves it as JSON over Ethernet. Monitors RTD serial packets at 19200 baud and supports baseball, basketball, volleyball, football, and hockey/lacrosse. Requires a MAX3232 level shifter for RS-232 conversion.
